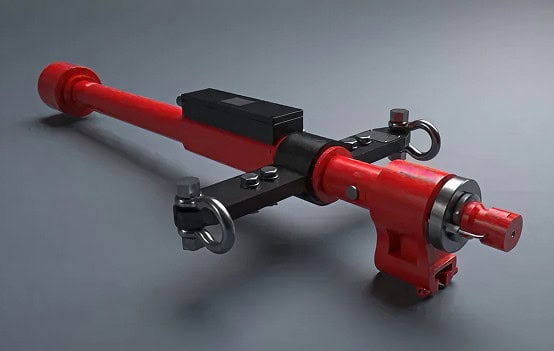

The ParaComm™ Antenna
The ParaComm™ Antenna is used for bi-directional data communication utilizing the Slick-E-Line® cable, transmitting and receiving data to and from the downhole tools. The ParaComm™ Antenna incorporates a communication box and lubricator section specially designed for the Slick-E-Line® system. The ParaComm™ Antenna also provides a mounting point for the ParaSheave™, which measures depth, speed and tension.
Associated variants of the ParaComm™ Antenna are available, including a RLWI adaptor kit and a high pressure rated 15K psi version.
Features
- Electric powered RxTX Antenna module for communication with Slick-E-Line®
- Communication module to downhole tools
- 4 piece assembly: Stuffing box, lubricator, seal sub and collar, EX communication box
- Quick release EX PoE snap connectors on Ex communication box
- 45 m data cable to data processing panel (in winch unit)
Benefit
- Robust communication with downhole tools via Slick-E-Line®
- Bi-directional communication between DP panel and downhole tools
- Single cable from EX communication box to winch unit to transmit data from both downhole tools and depth / tension sensors
- There is no need for wiring and installation of a slipring
The ParaComm™ Stuffing Box
The ParaComm™ Stuffing Box’ innovative design seals on the coated Slick-E-Line® against the well pressure. The patented sealing element is designed with a longer, large cross sectional area which provides an environment friendly seal and cleaning action at well intervention operations.
The stuffing box is designed to pack-off all sizes of slickline, Slick-E-Line® and coated cables to max. of 0.160” diameter (using 20” ParaSheave™). The bottom connection can be suited to standard PCE size of customer.
Features- One-piece packing stick with large cross sectional seal area
- Quick connect block for ParaSheave™
- Lockable free-rotational ParaSheave™ mount
- Oil / grease injection piston port
- Glycol / Chemical injection port
- Grease nipple for preventive maintenance to roller bearings of rotating sheave mount
- Integrated seal sub and collar assembly with ball safety check valve and blow-out plug
Benefit
- Safe, quick and easy to use stuffing box
- Environment friendly large sealing area
- Minimized oil / grease spill
- Easy re-assembly of one-piece packing stick can be done with wire in place
- Piston provides force to packing, allowing longer seal life and faster change.
- Integrated ball safety check valve
- Blow-out plug at lower seal sub moves to sealing position if packing element fails and seals on static wire
