X-Over Suite for Integrated Tools

X-Over Suite for Integrated Tools

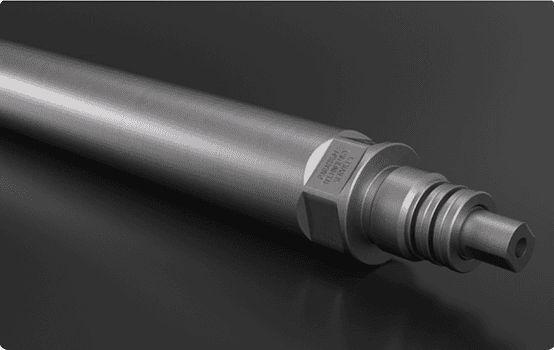

From mechanical slickline operations to production logging and well integrity measurements, the Slick-E-Line® system covers a wide range of service demands.

An extensive variety of interfacing cross-overs allow the Slick-E-Line system to operate with most industry standard logging and well integrity tools, as well as perform on command explosive and non-explosive operations.

• The PPU – 15/16 SR Box provides a mechanical connection between any PPU and any 15/16” sucker rod connection below. The crossover seals the PPU bottom connection and is suitable for all heavy duty slickline work such as jarring.
• The PPU – GE Sondex PLT I and II crossover subs provide a mechanical and electrical connection between any PPU and the Sondex production logging tools. The data from the PLT string is stored in the PPU memory (for backup and post job processing), and is also sent to surface via the ParaComm™ telemetry system where it is visualized in ParaOffice™.
• The PPU – Trigger Probe crossover sub provides a mechanical and electrical connection between the PPU and the Probe trigger module. The PPU – Trigger Probe crossover allows for the ParaComm™ telemetry system to power and initiate the Probe Electronic Firing Head (EFH) trigger. This crossover is compatible with PPU II or PPU IIa.
• The PPU - GO-A Pin crossover sub provides a mechanical and electrical connection between the PPU and tools below. The single electrical pin enables an on/off switch to be delivered to tools below the PPU (the power being delivered from the PPU, and the on/off command coming from surface control).
